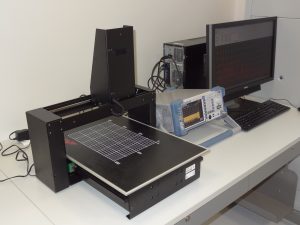

Scanner of Radiated Electromagnetic and Thermal Fields Detectus RS321

ClassElectronic measuring instrument

The instrument is suitable for visualization of radiated electromagnetic and temperature fields of electronic circuits on PCBs as well as cables components and entire products. Results are displayed as colour images (field plots) showing intensity and distribution of electromagnetic fields radiated by object under test or distribution of temperature. The instrument is suitable for pre-certification measurements of electromagnetic compatibility (EMC). Maximum dimensions of the object under test are 300x200x100 mm.
