Traffic analyser

TypeEndace Probe EP 7000/7010
ClassCommunication Tester
Responsibleprof. Ing. Kamil VRBA, CSc.

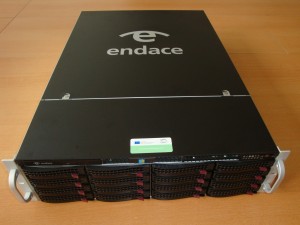

A long-term working  ENDACE PROBE EP 7000/7010 traffic analyser is designated for a capture of through its passing 10Gb/s data flow, its storage, analysis and consecutive re-sending into tested equipment. This analyser is able to save as far as 10 minutes of 10Gb data flow in full duplex. A storage for captures traffic is 9,6 TB (SAS HDD), 24 GB RAM, the storage can be  extended. A filtration of all traffic types in all RM OSI layers is possible through user´s defined filters. The equipment includes basic filter set for IPv4 and IPv6, it operates with the packets from the smallest (IEEE 802.3) for super jumbo frames.
