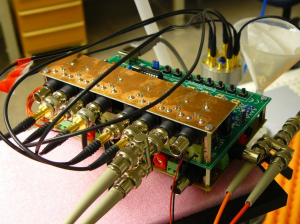

Measurement board

The Universal Measurement Board for parallel testing of elementary fuel cells and electronic devices

AuthorsKopecký, M.
FundingTA02020998 Low-temperature 5 kW alkaline fuel cell for stationary applications
Responsibleprof. Ing. Radimír VRBA, CSc.

The UMBED PCB was developed as measurement tool for testing all electronics devices. This PCB board was designed for the fast parallel testing for 6 samples. The UMBED PCB allows to the user setup 3 types of electric circuits by the Relays and control via COM port from the PC. For the controlling was design the universal software called SUMBED. The sensor unit was developed in cooperatin with Halmstad University Sweden.
