Dispersion analyser

TypeEXFO – FTB 200v2
ClassOther Analyzer / Spectroscope
Responsibleprof. Ing. Kamil VRBA, CSc.

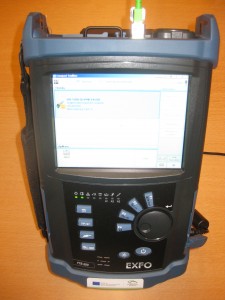

An EXFO – FTB 200v2 dispersion analyser enables a measuring of a chromatic dispersion CD and a polarisation mode dispersion PMD. The equipment measures CD of an optical trace with fibres ITU-T G.652, G.653, G.655, G.656 and G.657 to 150km. A laser retunes to 8 wave lengths in range from 1475nm to 1626 nm during time-of-flight method. An emulator PMD 1, 5 and 10 ps is in a basic set. The equipment measures the length of an optical trace with the accuracy of ±10m + 1% of the length. It is equipped with a port and software for video-microscope connection. Measuring modules OTDR, OSA, IP testers etc. are possible to plug in. The equipment is portable, with battery power supply, mechanical compact and robust performance.
